Description

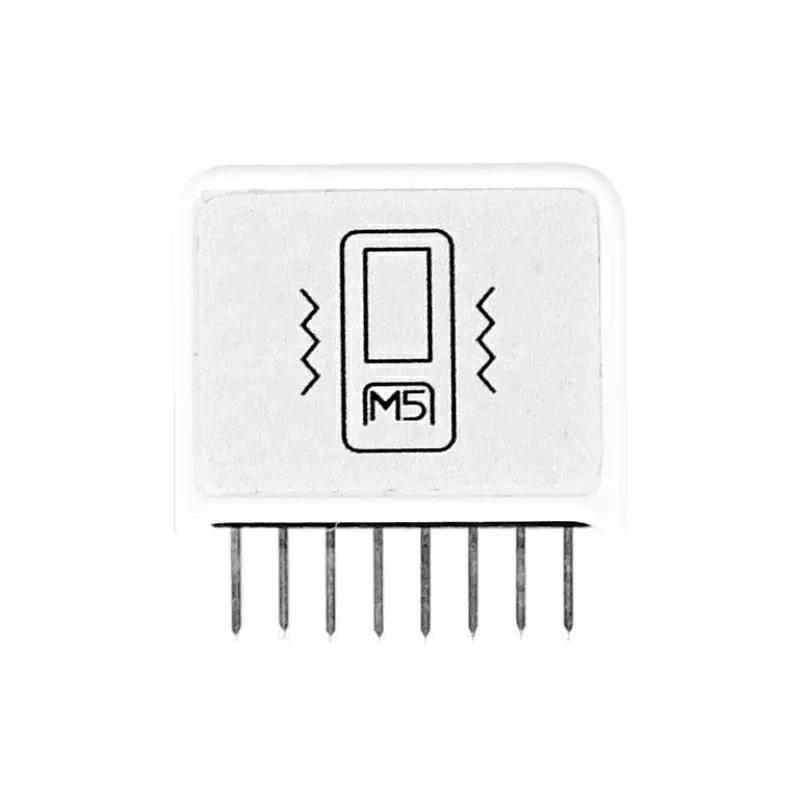

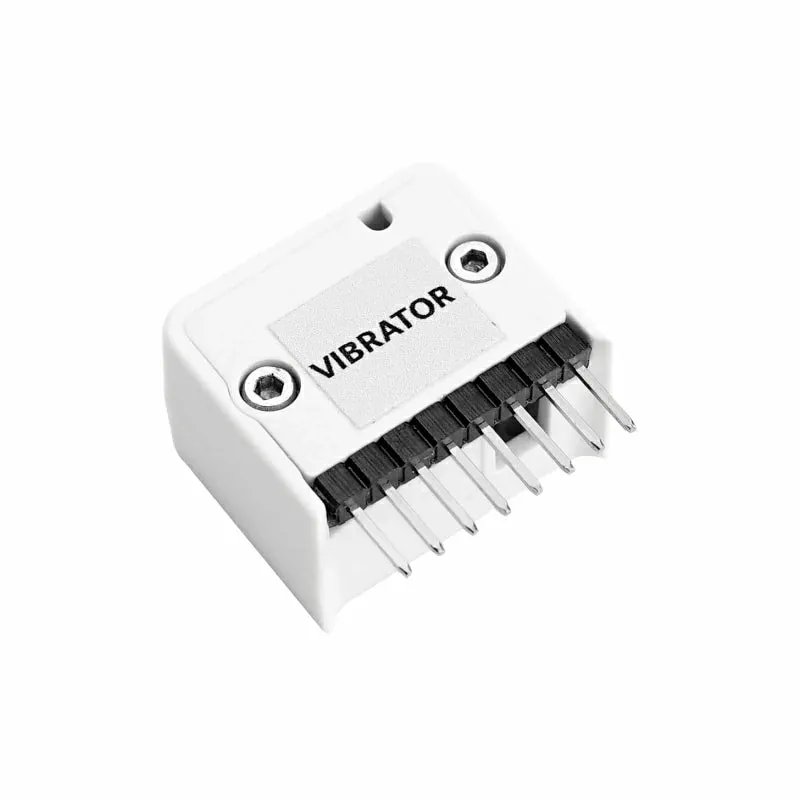

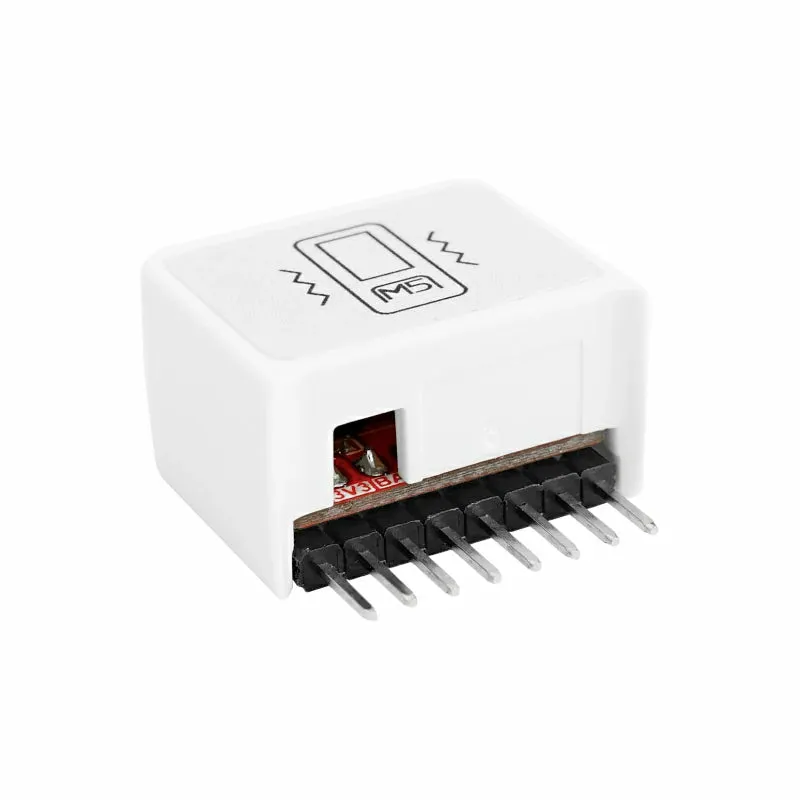

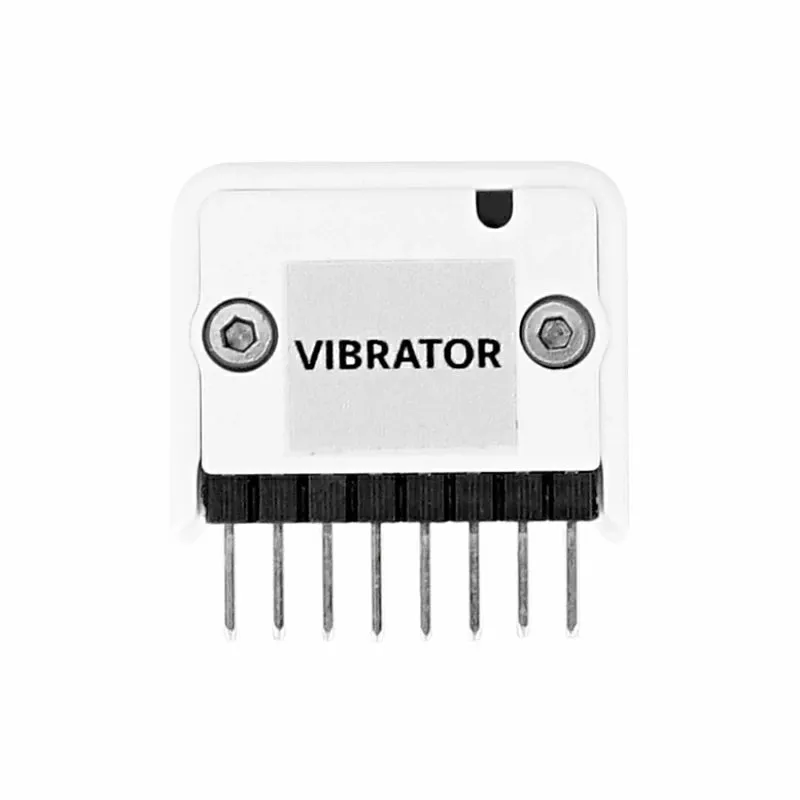

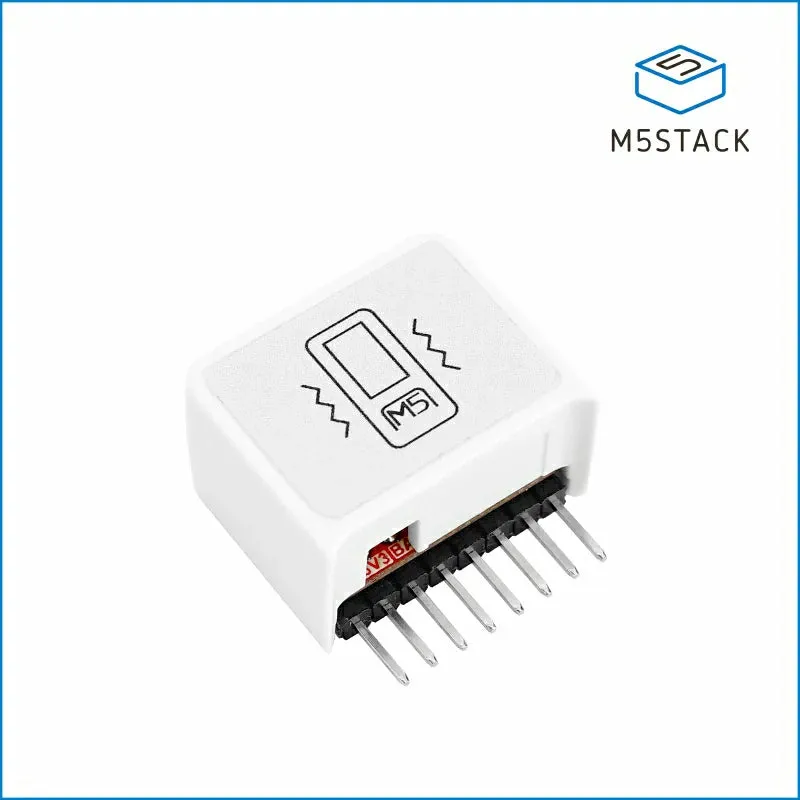

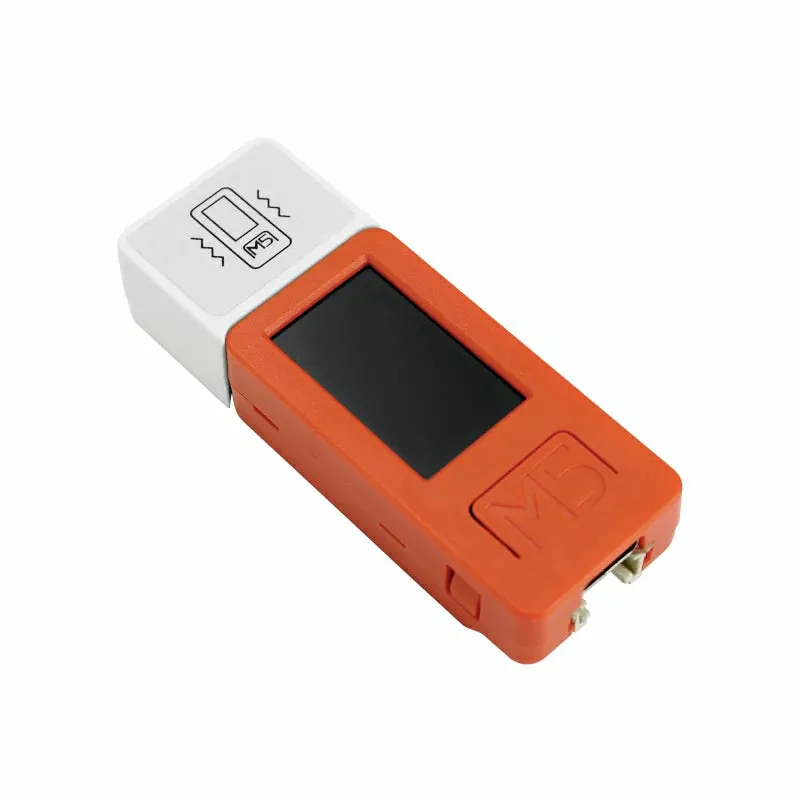

HAT-Vibrator is a specialized vibrating motor designed specifically for the M5StickC/C-Plus series. Featuring a cylindrical iron core patch Z3OC1T8219731 motor, it operates at a speed of 12000 RPM. This product offers a wide range of vibration effects, including adjustable vibration levels, "click" effects, various buzzer effects, and synchronization with music or audio input. Its versatility makes it suitable for integration into a variety of electronic devices, serving as an effective information prompt and providing tactile feedback.
With HAT-Vibrator, electronic products can benefit from enhanced user interaction and engagement. It can be utilized as a means of conveying important information or alerts, such as notifications, alarms, or reminders. Additionally, the vibration motor can be used to provide haptic feedback, allowing users to experience tactile sensations and responses in touch-based applications. Its compatibility with the M5StickC/C-Plus series ensures seamless integration and ease of use.
Features
- The motor rotates clockwise
- Rotational speed: 12000RPM
- Compatible with StickC/C-PLUS
- Supported platforms UIFlow, Arduino .

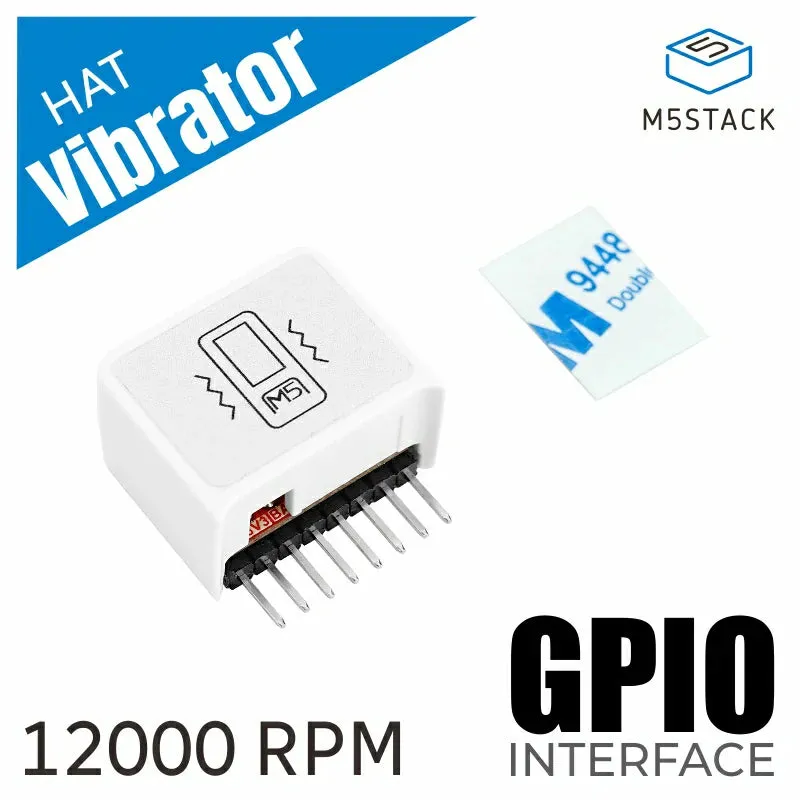

Includes
- 1x HAT-Vibrator
- 1 × Double-sided sticker
Applications
- Touch feedback
- Vibration information prompt
Specification
| Resources | Parameters |
|---|---|
| Vibrator | Z3OC1T8219731 motor |

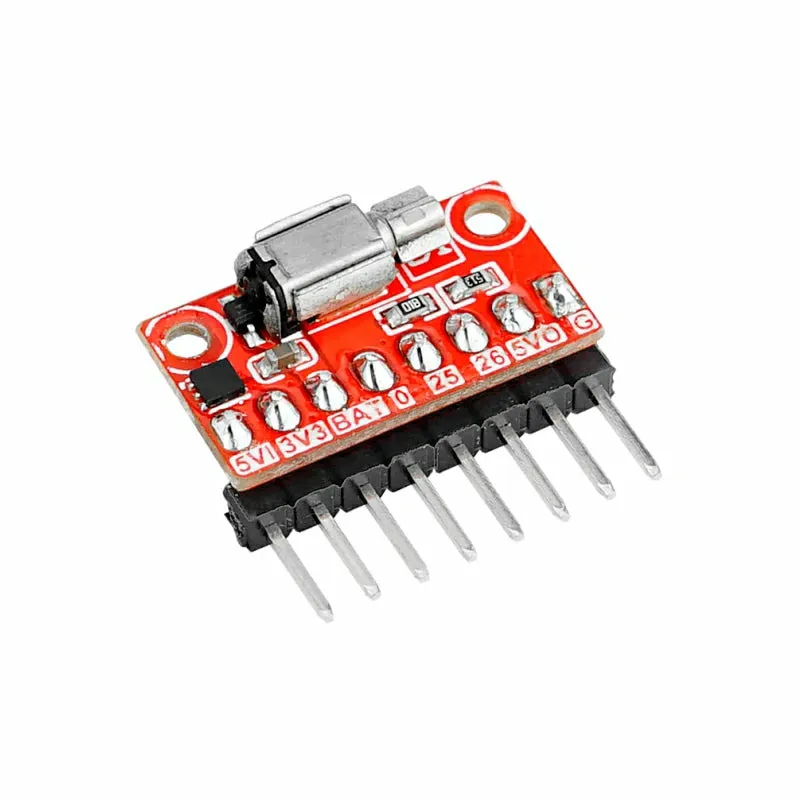

| Motor construction | 4mm×3mm cylindrical core SMT motor |
| Motor Number of magnet poles | 2-poles（inner magnet type） |
| Quota voltage | 3.0V |
| Rated current | 85mA |
| Rated speed | 12000RPM |
| Using voltage | 2.3V-4.5V |
| Operating conditions | 0~95%RH , 0-40℃ |
| Vibration Frequency | 10 to 55Hz |

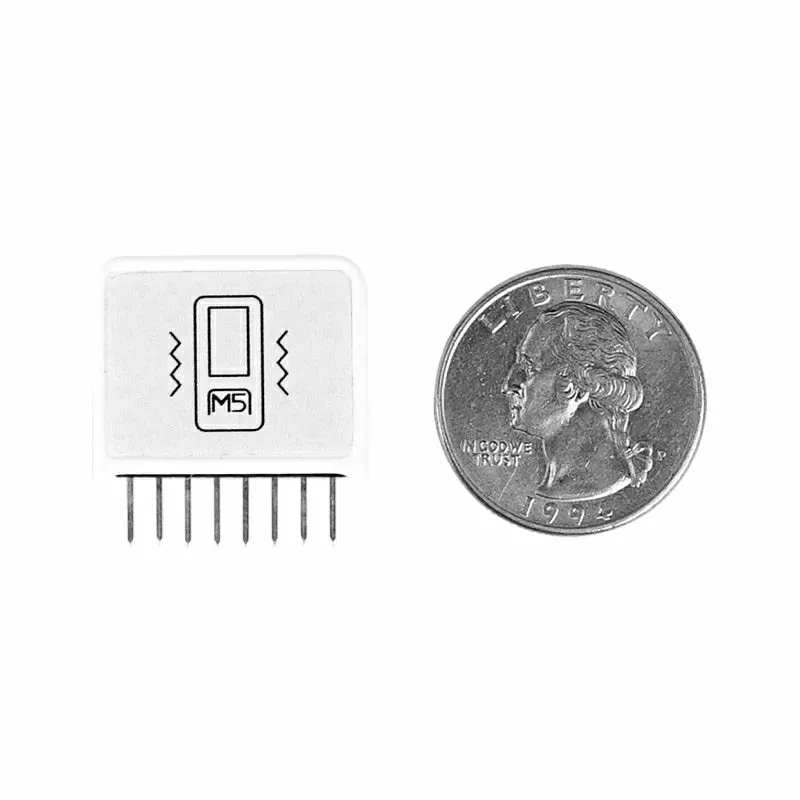

| Product Size | 24mm × 21mm × 14mm |

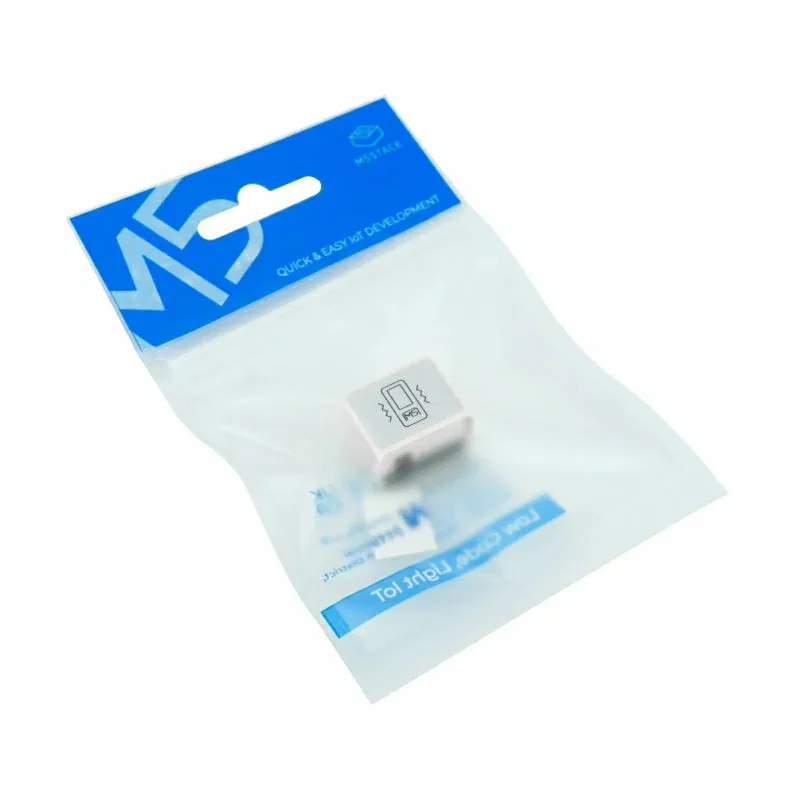

| Package Size | 136mm × 92mm × 14mm |
| Product Weight | 4.7g |
| Package Weight | 7.1g |
