| Product Attribute | Attribute Value |
|---|---|
| Approvals | CSA Certified;UL Listed;EN 50178 |
| Connection | 0.2-4.0mm2 (solid), 0.2-2.5mm2 (flexible), 22-12 AWG |
| Depth | 2.283" (58mm) |
| Dimensions | 110 x 35.5 x 58 mm |
| For Use With | Modular Controllers ; EASY700 Intelligent Relays ; 800 Intelligent Relays ; MFD Intelligent Relays |
| Input | 12 digital |
| Length | 4.331" (110mm) |
| Mounting Type | Top-hat rail |
| Number of Outputs | 2 Output |
| Output Type | Relay |
| Primary Type | Expansion |
| Quantity | 1 |
| Series | |
| Special Features | Expansion Module |
| Standards | EN 50178, IEC/EN 60947, UL Listed, CSA Certified, IP20 Rating |
| Supply Voltage | 24 VAC/VDC |
| Type | 2 I/O expansion |
| UPC Code | 4015082321864 |
| Voltage Rating | 110-240V |
| Width | 1.398" (35.5mm) |
Overview

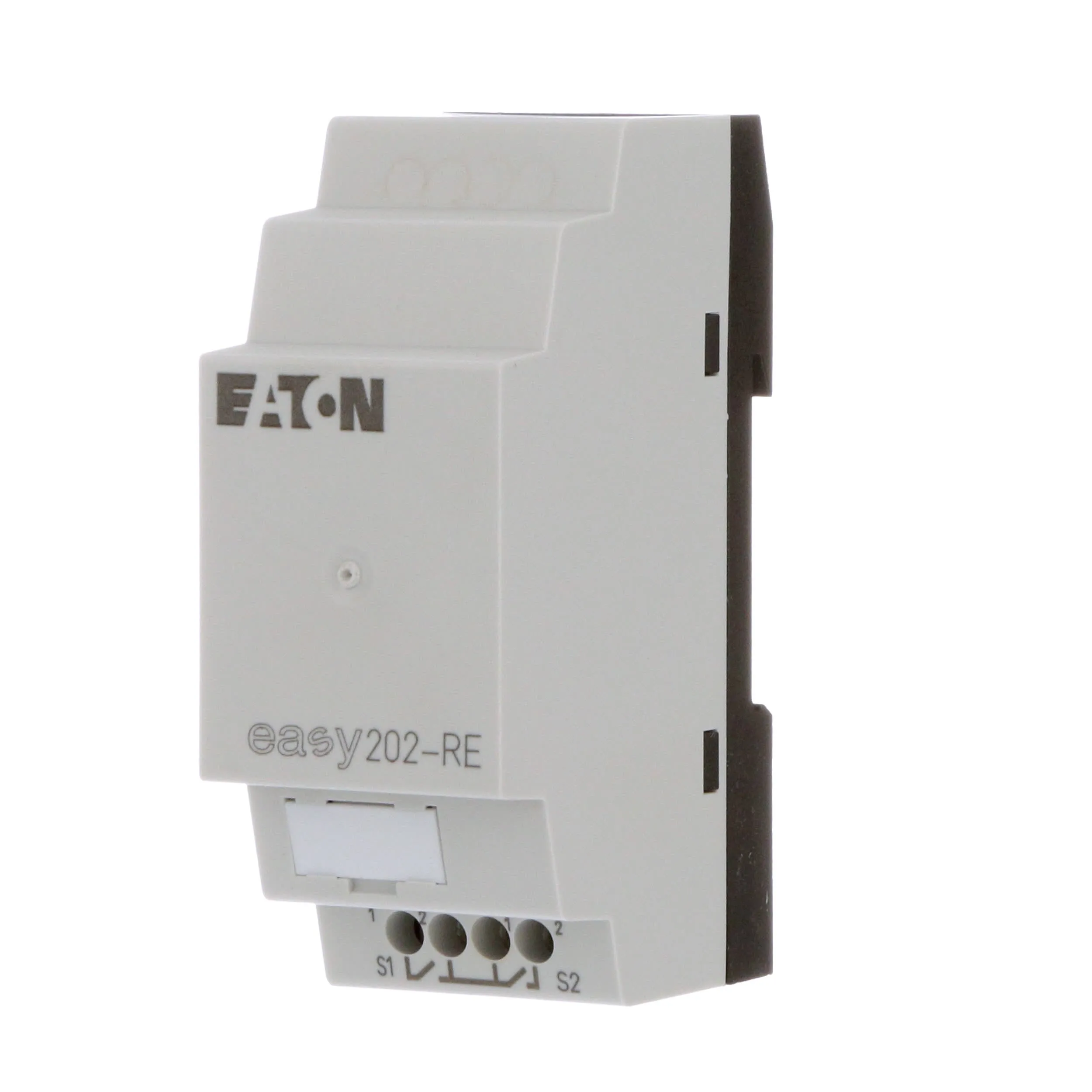

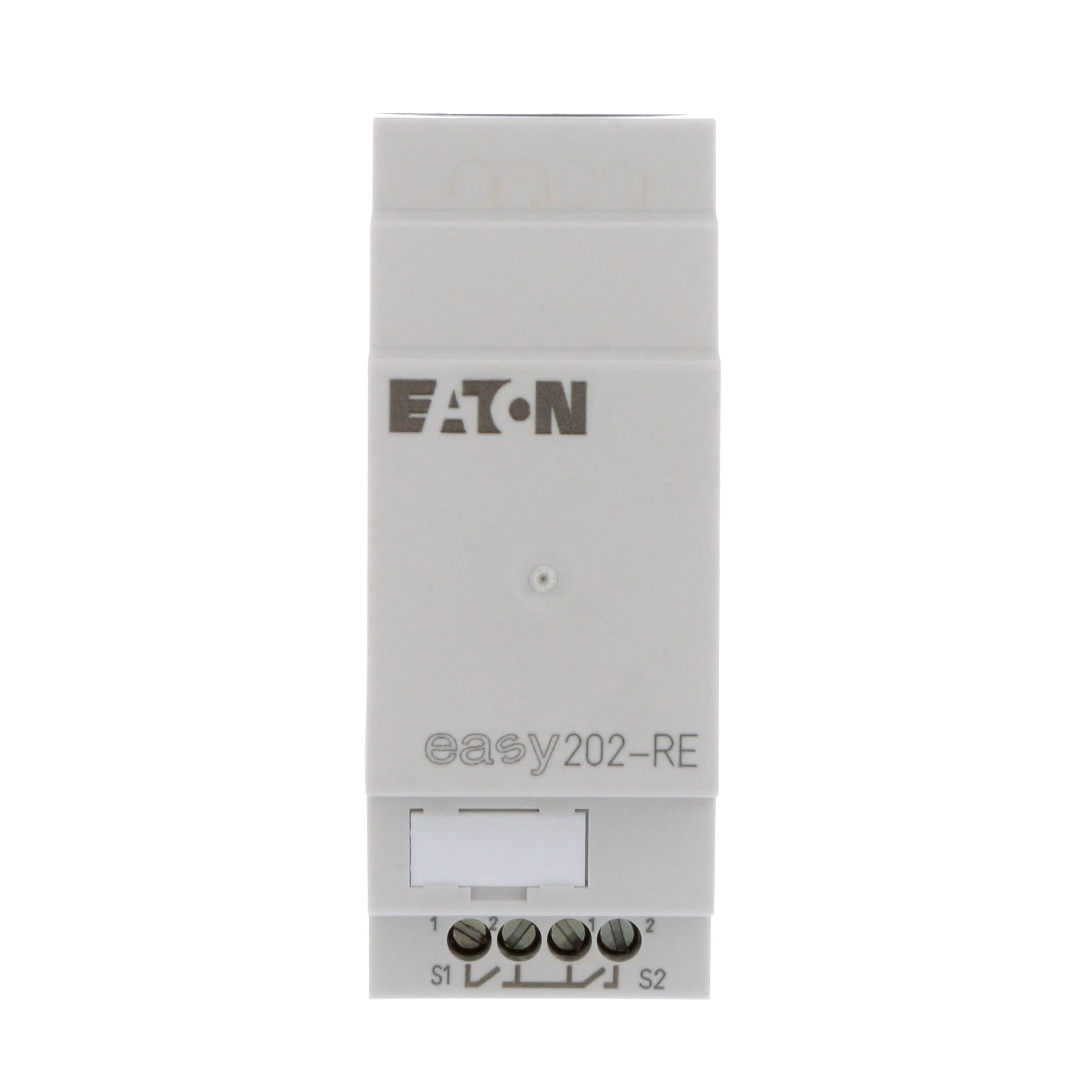

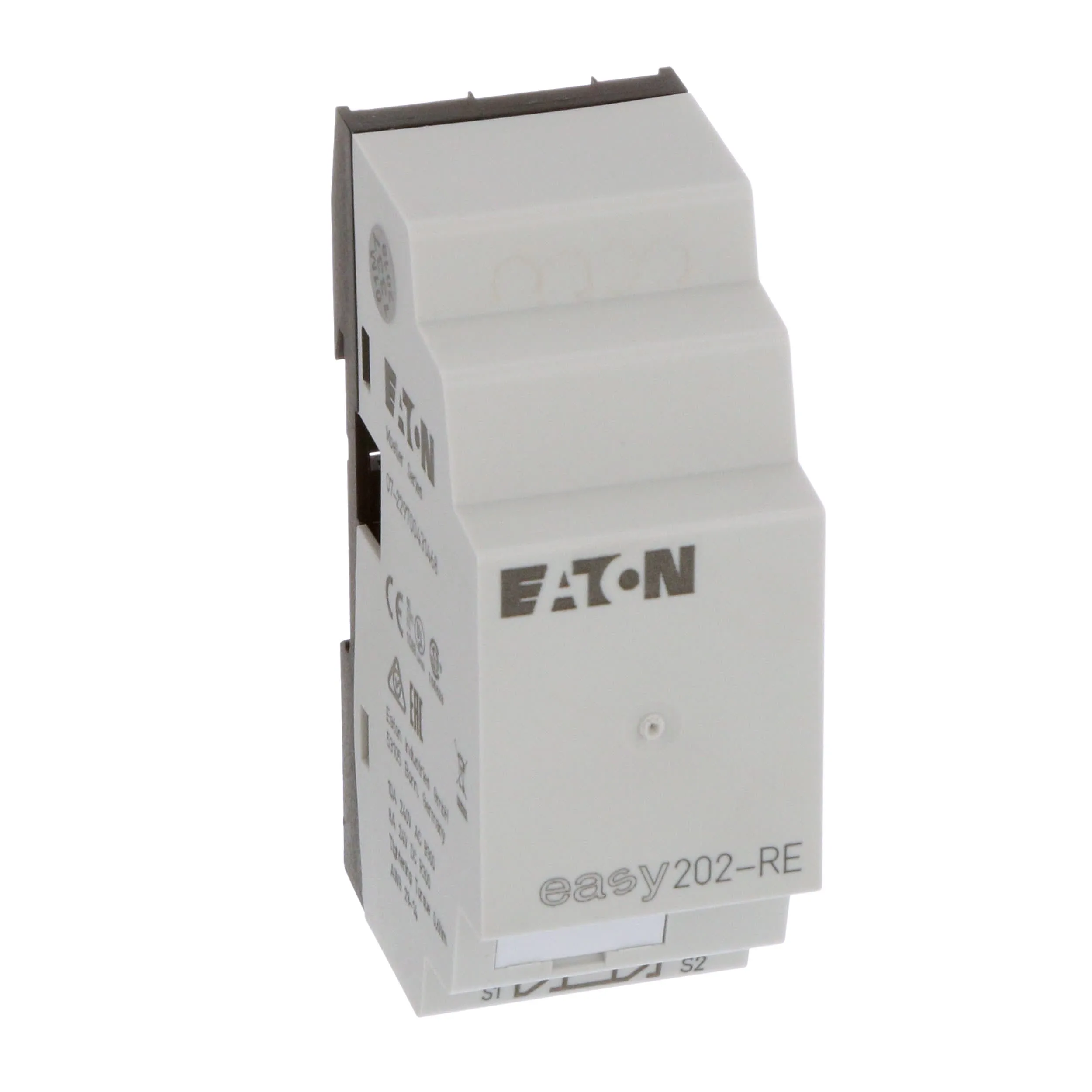

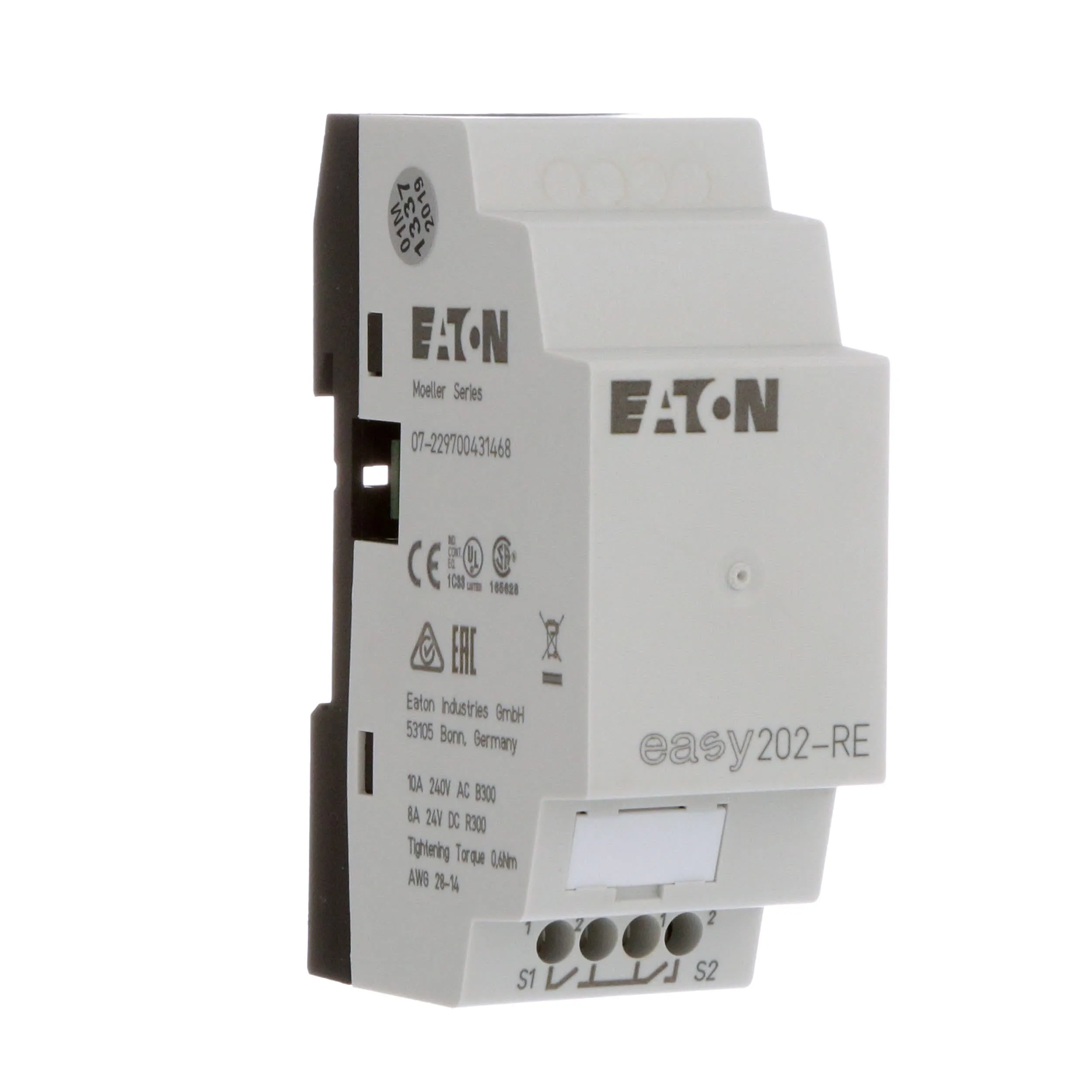

The EZ202-RE expansion module provides two additional relay outputs that can be connected directly using the EZ-LINK connector.
