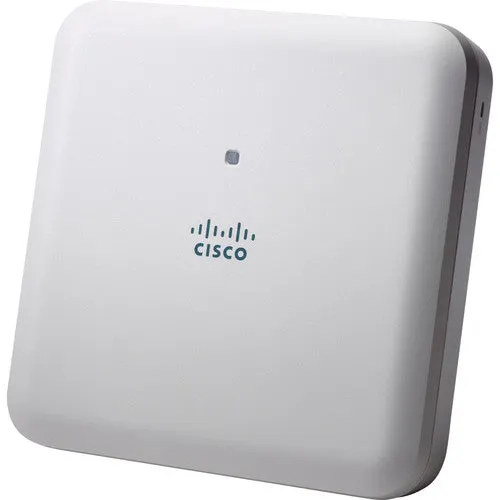

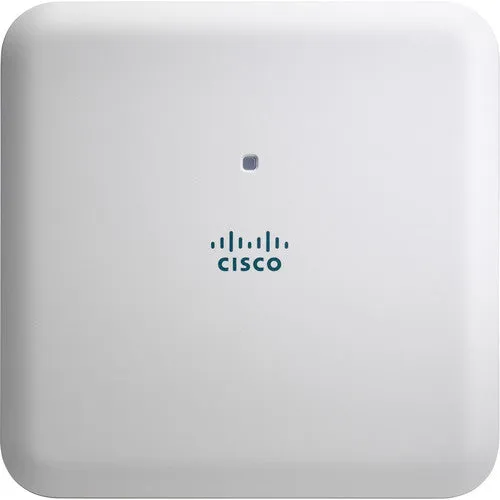

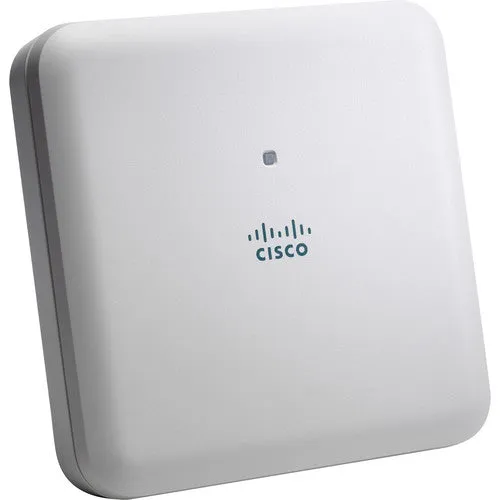

Give your corporate wireless network a boost with the Aironet 1832i Dual-Band Access Point from Cisco. Capable of a total throughput of up to 1 Gb/s, the dual-band Aironet 1832i is equipped with three internal antennas and a 10/100/1000 Mb/s PoE (Power over Ethernet) port, handy for transmitting data and powering the access point over a single cable.
Designed with support for the Wi-Fi 5 (802.11ac) Wave 2 wireless standard, the Aironet 1832i features 3 x 3 multi-user MIMO, which allows for simultaneous data transmissions to multiple phones, tablets, laptops, and other compatible wireless clients. This version of the Aironet 1832i comes bundled with Cisco's Mobility Express software, which offers virtual WLAN controller support.
Cisco Mobility Express Software
An enterprise-class virtual WLAN controller, Cisco's Mobility Express Solution allows the Aironet 1831i to be deployed on networks without a physical controller, ideal for small to medium-sized deployments that require multiple access points.
Transmit Beamforming Technology
Helps to improve downlink performance to mobile devices, including one- and two-spatial-stream devices on 802.11ac, while improving battery life on smartphones, tablets, and other mobile devices.
Supported Wireless LAN Controllers
The Aironet 1831i supports the following Cisco wireless LAN controllers: 2500 Series Wireless Controllers, the Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller.
802.11n Version 2.0 Capabilities
3 x 3 MIMO with two spatial streams
Maximal Ratio Combining (MRC)
20- and 40-MHz channels
PHY data rates up to 300 Mb/s (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support
Maximal Ratio Combining (MRC)
20- and 40-MHz channels
PHY data rates up to 300 Mb/s (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 and 2 Capabilities
3x3 MIMO with two spatial streams, single-user or multiuser MIMO
MRC
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80-MHz channels
PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
MRC
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80-MHz channels
PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
Deployment Modes
Centralized
Standalone
Cisco FlexConnect
Standalone
Cisco FlexConnect
Status LED Indicators
Boot loader status
Association status
Operating status
Boot loader warnings
Boot loader errors
Association status
Operating status
Boot loader warnings
Boot loader errors
Powering Options
802.3af
802.3at
Enhanced PoE
Cisco local power supply
Cisco power injector
Note: If 802.3af PoE is the source of power, the USB port is disabled.
802.3at
Enhanced PoE
Cisco local power supply
Cisco power injector
Note: If 802.3af PoE is the source of power, the USB port is disabled.
Extensible Authentication Protocol (EAP) types:
EAP-Transport Layer Security (TLS)
EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
Protected EAP (PEAP) v0 or EAP-MSCHAPv2
EAP-Flexible Authentication via Secure Tunneling (FAST)
PEAP v1 or EAP-Generic Token Card (GTC)
EAP-Subscriber Identity Module (SIM)
EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
Protected EAP (PEAP) v0 or EAP-MSCHAPv2
EAP-Flexible Authentication via Secure Tunneling (FAST)
PEAP v1 or EAP-Generic Token Card (GTC)
EAP-Subscriber Identity Module (SIM)
